VWB - Voldtrip

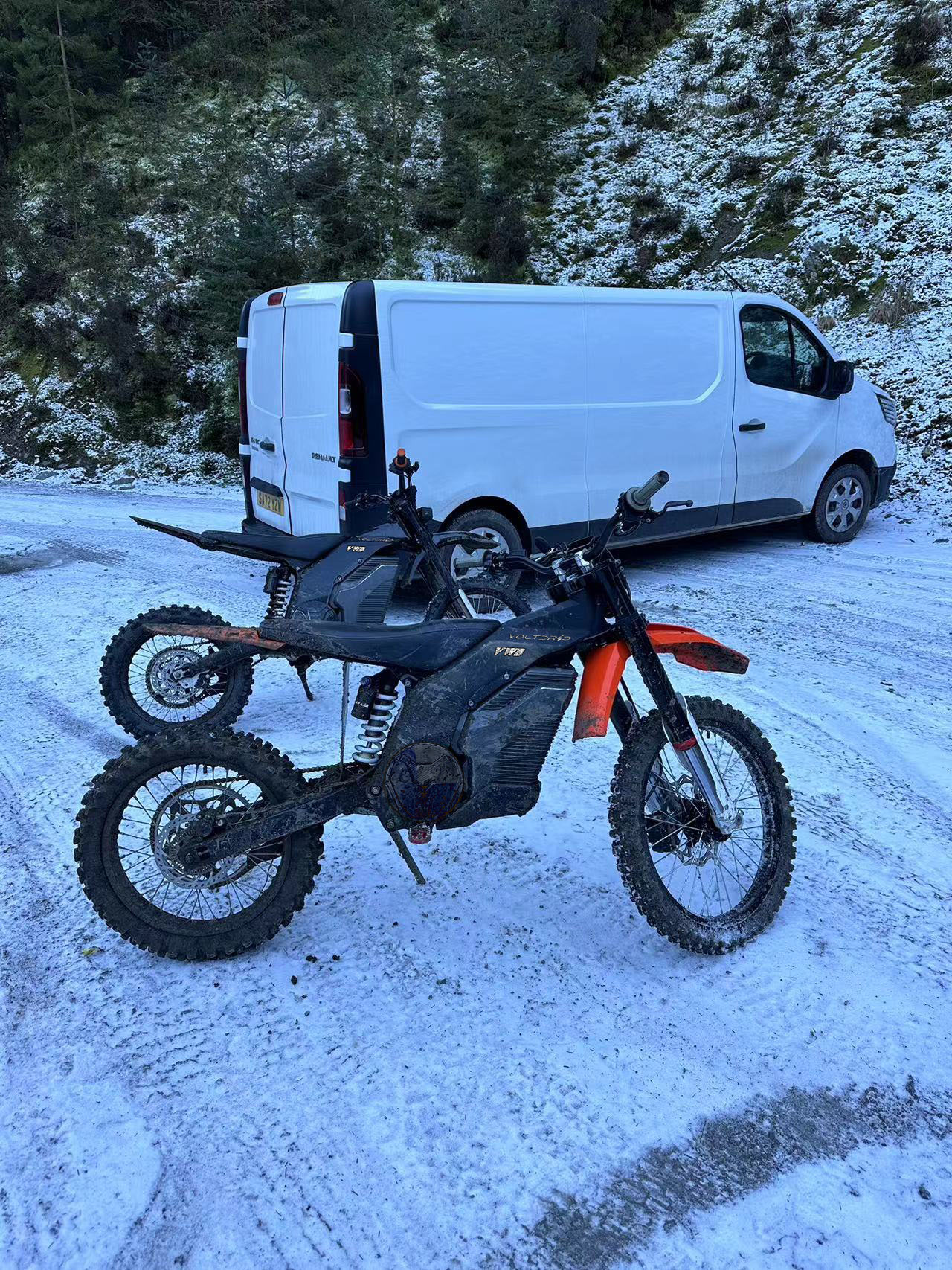

Ignite Boundless Exploration with VWB

Built tough with a rock-solid frame and advanced battery tech. Bigger than the VWA, it fits taller riders and adds comfort without killing agility. Own the trail with a dirt bike that sets a new bar for control and confidence.

Rapid Acceleration and High Speed

Robust 12000W Motor

Voltdrip VWB—12,000W of pure electric power, built to thrill.

2.35s

0-50km/H

12kw

peak power

Battery

Frame

Bright Headlight

High-Quality Switch Control

Ride Tracker

Motor

Swift controls

Suspension

Mudguard Rubber

World’s First Direct Immersion Liquid Cooled Battery

Patented immersion-cooled battery delivers 8× better thermal stability with half the usual heat rise. Two-hour charge lasts all day; integrated heating ensures −40 °C reliability.

Light, Rugged, Zero Welding

A one-piece alloy frame with zero welding delivers 30% more rigidity, combining lightweight safety with superior performance under extreme conditions.

Nighttime Protection

Voltdrip VWB’s powerful headlight, high-visibility front indicators, and bright rear lights illuminate your path and make you unmistakable to others on the road.

Voltdrip VWB’s powerful headlight, high-visibility front indicators, and bright rear lights illuminate your path and ensure you’re clearly seen on the road.

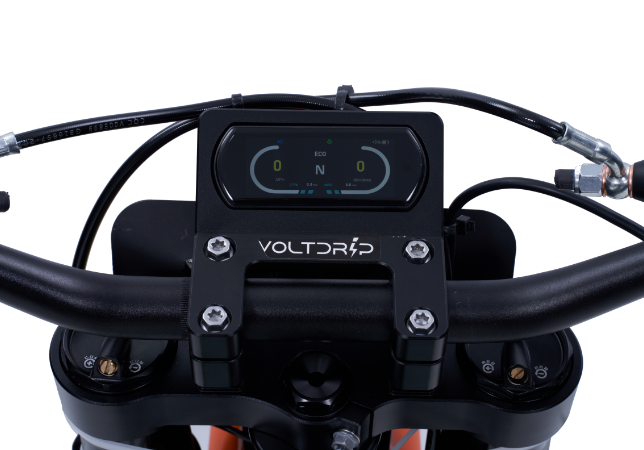

Comprehensive Riding Data Display

The vibrant display screen provides all the essential riding details, including speed,distance traveled, and riding mode, ensuring you stay informed and up-to-date. Its clarity even shines through under direct sunlight.

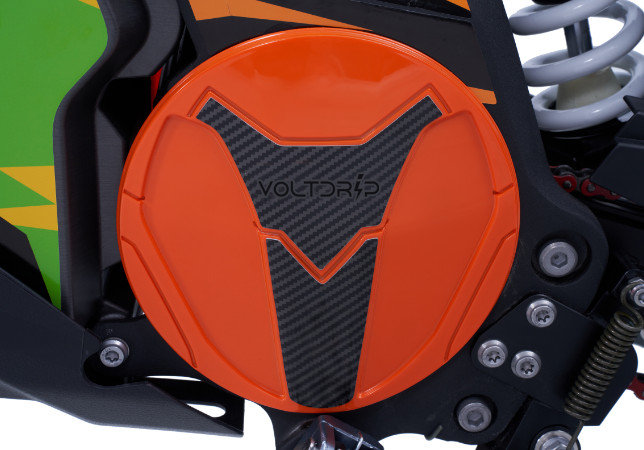

12000W Revolutionary Power Motor

Experience the epitome of hioh-perfomance engineering with our cuting-edce 12000W Hich-Power Motor, propeling you to exhlarating speeds of 100kmh while delivering an impressive torque of 460N.m for an unparalleled and electrifying ride.

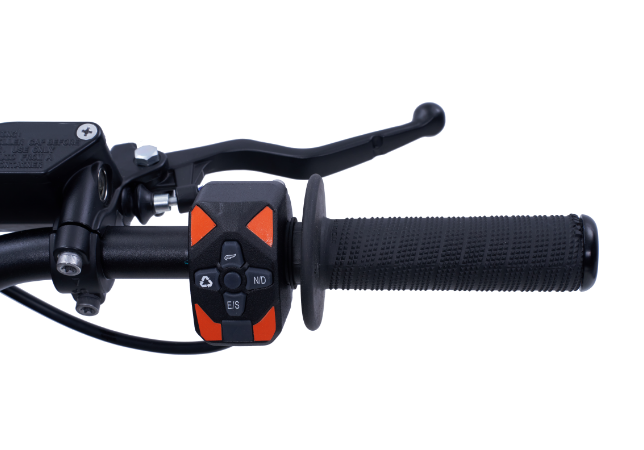

Effortless Riding

The responsive switch controls not only simplify operation but also enhance the overall riding experience. Riders can enjoy swift and precise responsiveness, adding to the bike’s user-friendly design for a more confident and enioyable journey.

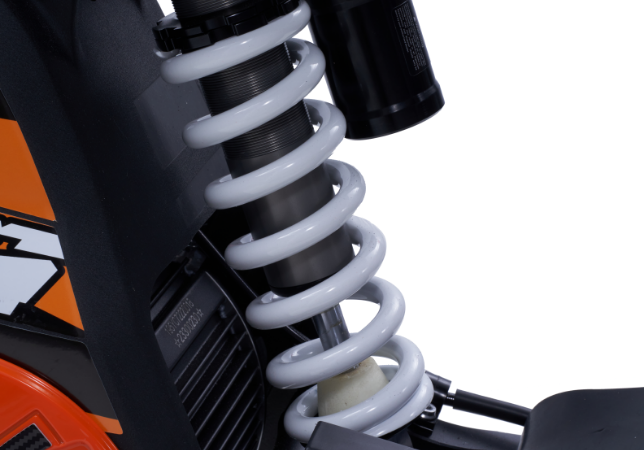

Terrain Tamer

The advanced suspension system delivers a smooth and controled ride, effecively absoring bumps and uneven terrain. Designed for opimal perfomance,it enhances comfort and stability.

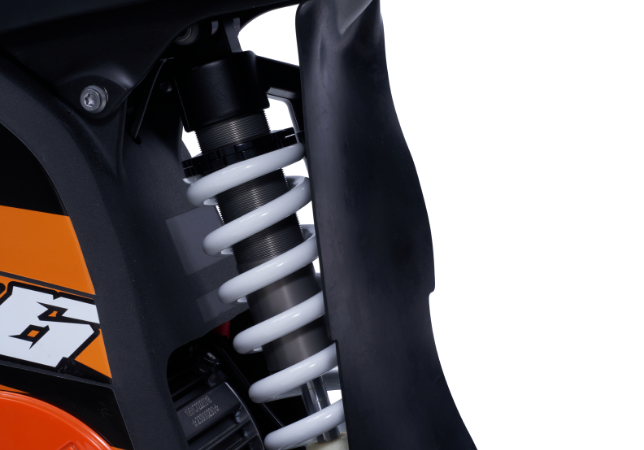

Guardian Shield

The mudguard rubber offers robust protection, effecively preventing mud and debris from splattering onto the bike and rider. This durable feaure ensures a clean and safe ride in challenging off-road conditions.

Available in Three Striking Colors

VWB Version

color preview: Black

BASIC PRODUCT PARAMETERS

Vehicle size	2080×800×1160mm
Wheelbase	1300mm
Front wheel (rear wheel)	80/100-21/ 100/90-18
Battery capacity	4320Wh
Maximum power	12000W
Max range	180KM(30km/h)
Maximum speed	100KM/H
Rear wheel torque	380N.m
Gradeability	40% slope

Front shock absorption stroke	230mm
Ground clearance	340mm
Vehicle weight	97.5KG
Maximum load (single person)	120KG
Wading depth	>750mm
0-100% charging time	4h
Battery auxiliary heat	-40 degree normal charging use
Carton packing size	1800420880mm
Loading quantity（20/40/40HQ）	32/102

Voltdrip VWB Version Variants

Model	VWB-60 (72V60A)	VWB-48 (72V48A)
Battery	72V60Ah Lithium Fero Phosphate Battery	72V48Ah Lithium NCM Battery,Liquid Cooled
Available Color	Matt Black
Motor	Permanent Magnet Synchronous Motor
Controller	Sine Wave Vector Controller
Overall Size	2080×800×1160mm
Frame	Patented Aluminum-magnesium alloy one-piece frame ( Zero Welding )
Wheel Base	1300mm
F/R Tyre	80/100-21/ 100/90-18
Battery Capacity	4320Wh	3456Wh
Rated Power	5000W
Max Power	12000W
Max Range	180KM (@ 30 km/h)	150KM (@ 30 km/h)
Max Speed	100KM/H
Rear Torque	380N.m
Gradeability	40% Slope
Front Fork Stroke	230mm
Ground Clearance	340mm
Seat Height	910mm
Vehicle Weight	97.5KG	97KG
Max Load	120KG
Wading Depth	＞7500mm
Charging Time	4H	3H
Battery Auxiliary Heat	-40℃ Normal Charging
Operation Temperature	-40℃ – 50℃
Carton Packing Size	1800420880mm
Loading（20GP/40HQ）	32/102

Voltdrip VWB

For Rough and Rugged Paths
